A DEF injector feed line may look like a relatively small part of a diesel aftertreatment system, but its routing can place it within a demanding thermal environment. Exhaust pipes, diesel particulate filters, SCR catalysts and other hot-side components can expose nearby DEF lines to sustained radiant heat, particularly where vehicle packaging leaves only limited clearance between systems.

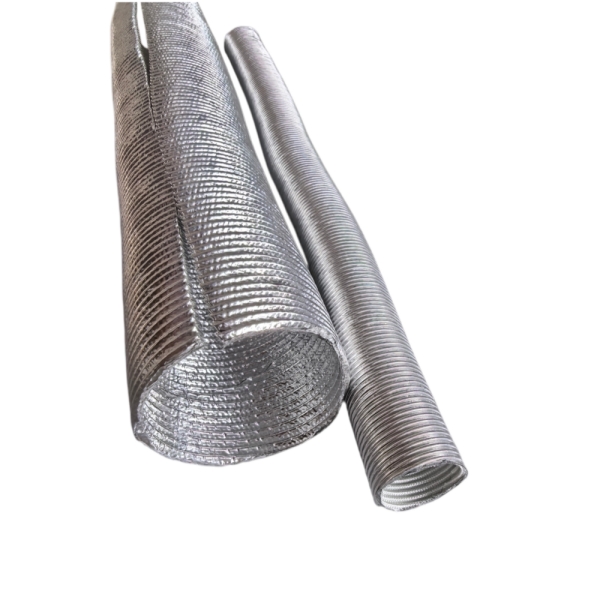

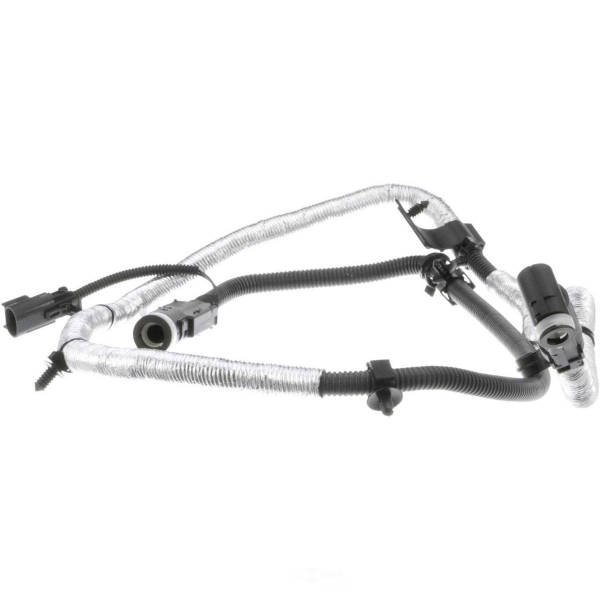

For these locations, BSTFLEX manufactures a corrugated DEF injector feed line heat shield using an aluminum reflective outer layer combined with fiberglass thermal insulation. The formed sleeve creates a lightweight protective barrier around the line while remaining flexible enough to follow curved routing and changes in direction.
Rather than insulating the exhaust component itself, this design puts thermal protection directly around the component that needs to be protected.
Modern diesel exhaust aftertreatment assemblies package multiple components into a relatively concentrated area. Depending on vehicle architecture, a Diesel Exhaust Fluid feed line can pass near an exhaust pipe, DPF, SCR catalyst, dosing assembly or other high-temperature surface.
In these areas, the line does not necessarily need to touch the exhaust to experience thermal stress. Radiant energy from the hot surface can continuously heat the surrounding space and raise the temperature of adjacent components.
A correctly positioned DEF line heat shield creates an additional thermal barrier between the feed line and this hot environment. Typical applications include:
For broader exhaust-side thermal management, see the BSTFLEX Exhaust Heat Shield Insulation range.
The geometry of a DEF feed line is one of the main reasons a conventional straight protective tube may not be suitable.
Routing can include bends, offsets, connection points and limited-clearance sections. A rigid shield that does not follow this geometry can be difficult to package and may interfere with neighboring components.

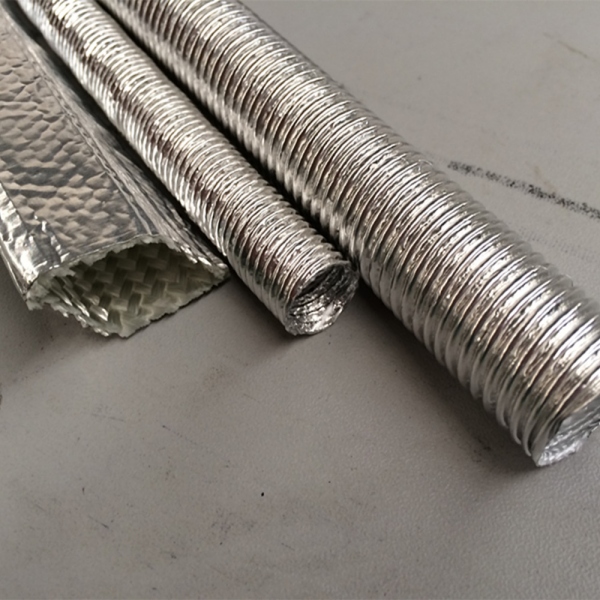

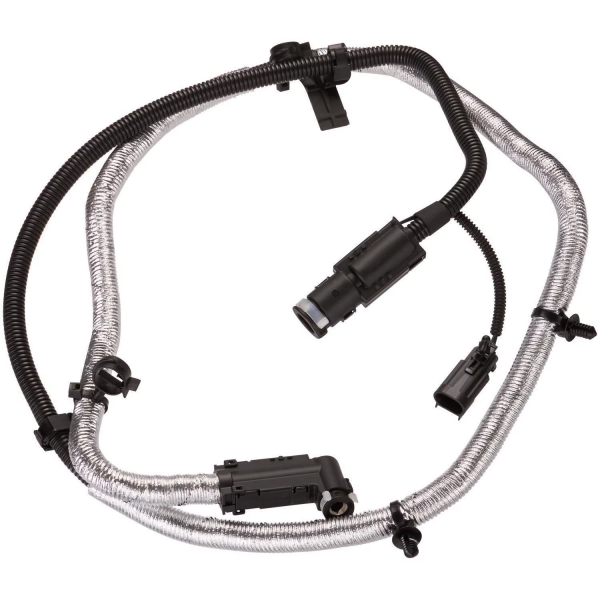

BSTFLEX uses a corrugated heat shield sleeve construction to provide controlled flexibility along the length of the shield. The corrugations allow the sleeve to bend with the routing rather than requiring the vehicle line to follow the shape of the protective material.
This structure is particularly useful where thermal protection must pass through:
The result is a protective heat shield that can be developed around the actual installation envelope instead of treating every line as a straight tube.
The two materials perform different functions within the heat shield.
The external aluminum layer faces the surrounding hot environment. Its reflective metallic surface is used primarily to manage radiant heat arriving from nearby exhaust components.
This is important because a DEF line positioned beside a high-temperature exhaust surface may receive substantial thermal radiation even when there is no direct physical contact between the two parts.
Beneath the aluminum surface, fiberglass provides the insulating body of the sleeve. The fiberglass layer slows heat transfer through the shield and separates the protected line from the external aluminum facing.
The combination therefore provides a more functional thermal barrier than relying on thin aluminum foil alone:
Radiant heat source → reflective aluminum surface → fiberglass insulation → protected DEF feed line
Flexibility should not be treated as a secondary feature for this type of component.
Automotive hoses, tubes and harnesses are frequently routed around other systems rather than in a straight path. A corrugated profile gives the heat shield a defined bending mechanism while retaining its tubular protective shape.
Depending on diameter, corrugation geometry and material specification, the construction can be developed to balance:
This makes the design suitable not only as a DEF hose heat shield, but also for other automotive fluid lines and electrical systems exposed to localized radiant heat.
These two products address the same thermal problem from different sides.
Exhaust insulation is installed on or around the hot exhaust component to contain heat at its source.
A DEF injector feed line heat shield, by contrast, is installed around the temperature-sensitive line to reduce the amount of external heat reaching it.
| Thermal Protection Method | Installed On | Primary Function |
|---|---|---|
| Exhaust insulation blanket | Exhaust pipe, manifold, DPF or other hot component | Contain heat at the source |
| Rigid exhaust heat shield | Between exhaust and nearby components | Interrupt radiant heat transfer |
| Corrugated DEF line heat shield | Directly around DEF line | Protect the line from external thermal exposure |
| Wire heat shield sleeve | Wiring or cable | Protect electrical components near hot zones |
In heavily packaged vehicles, more than one method can be used as part of the same thermal management strategy.
The same aluminum-fiberglass corrugated construction can be engineered for other small-diameter components routed through exhaust-adjacent areas.
Possible applications include:
This is where the product can also function as an automotive wiring heat shield, wire heat shield sleeve or heat sleeve for wiring when the internal dimensions and construction are developed for an electrical harness rather than a DEF tube.
BSTFLEX also manufactures other thermal and heat shield sleeves for hoses, cables, wiring and fluid lines exposed to high-temperature automotive environments.
Thermal conditions around diesel aftertreatment equipment differ from those found in many conventional engine-bay locations.
The shield may need to operate near components experiencing substantial temperature changes during normal operation and aftertreatment events. At the same time, available clearance may be restricted by brackets, sensors, electrical connectors, vehicle structure and adjacent piping.
For this reason, selection should not be based only on a generic material temperature rating.
An OEM thermal protection project should consider:
These factors determine the appropriate shield dimensions and construction more accurately than temperature alone.
DEF line layouts vary significantly between vehicle platforms. For OEM and Tier supply projects, BSTFLEX can develop the heat shield according to the actual line rather than restricting the customer to a single standard diameter or length.
Customization can include:
Development can be based on drawings, dimensions, installation photographs, line samples or application requirements.
The DEF injector feed line is only one component within a thermally crowded exhaust aftertreatment area.
A nearby wiring harness may require a wire heat sleeve. A sensor cable may require a heat resistant cable sleeve. Another fluid tube may require an aluminum reflective protective heat shield. Meanwhile, the exhaust source itself may require an exhaust blanket, formed metal shield or another type of exhaust heat shield insulation.
Looking at these components as one thermal system allows the shielding strategy to be matched more precisely to the source of the heat, the component being protected and the available installation space.
For development of a custom DEF injector line heat shield, the most useful starting information includes:
BSTFLEX manufactures custom thermal protection components for automotive, diesel engine, commercial vehicle and other high-temperature applications. Prototype development and production configurations can be evaluated according to the customer's installation geometry and thermal requirements.
It is a thermal protective barrier fitted around a Diesel Exhaust Fluid injector feed line where the line is exposed to heat from nearby exhaust or aftertreatment components. The BSTFLEX version uses an aluminum reflective surface with fiberglass insulation in a flexible corrugated construction.
The aluminum surface helps manage radiant heat from nearby hot components. It is combined with an insulating fiberglass layer so the construction performs as more than a simple metallic covering.
Yes. The corrugated geometry is specifically intended to provide flexibility for curved line routing. The required diameter, corrugation and bending characteristics should be selected according to the actual installation.
Yes. A related corrugated aluminum-fiberglass construction can be developed as a wiring heat shield, wire heat shield sleeve or heat resistant wire sleeve when its dimensions and installation method are matched to the cable or harness.
Yes. Diameter, length, insulation structure, corrugation geometry and end configuration can be developed for OEM applications.
No. Exhaust pipe insulation primarily controls heat at the hot exhaust component. A DEF line heat shield protects the nearby DEF line from that external thermal environment. Both approaches can be used within the same exhaust thermal management system.
Where a DEF feed line passes close to an exhaust pipe, DPF, SCR catalyst or another high-temperature component, a purpose-built shield can provide localized protection without unnecessarily insulating the entire surrounding assembly.
BSTFLEX can manufacture corrugated aluminum fiberglass heat shields for DEF injector feed lines, DEF hoses, SCR dosing lines, automotive wiring and other exhaust-adjacent components in custom diameters, lengths and configurations.
Send us the line diameter, required length, routing geometry, operating environment and available installation space to evaluate a custom heat shield for your application.
