Insulated Diesel Heater Ducting: How to Reduce Heat Loss in Vans, RVs and Boats
Insulated diesel heater ducting is used to transfer warm air from a diesel air heater while reducing heat loss along the duct route. In vans, RVs, boats and truck cabins, warm air often travels through cold panels, floor cavities, under-seat spaces, storage compartments or marine cabin structures before it reaches the outlet. If the ducting is not protected, part of the heat can be lost before it reaches the living or working area.
Insulated ducting is especially useful when the heater is mounted away from the main cabin, when the ducting route is long, when the hose passes through cold compartments, or when better heating efficiency is required. Buyers may search for diesel heater duct insulation, heater duct insulation sleeve, insulated warm air duct, insulated APK ducting, warm air duct insulation or diesel heater duct heat loss reduction.
BSTFLEX supplies insulated diesel heater ducting, APK warm air ducting, PAP hot air ducting and heat protection tube products for vans, RVs, boats, caravans, trucks, marine heater systems and OEM warm air ducting projects.

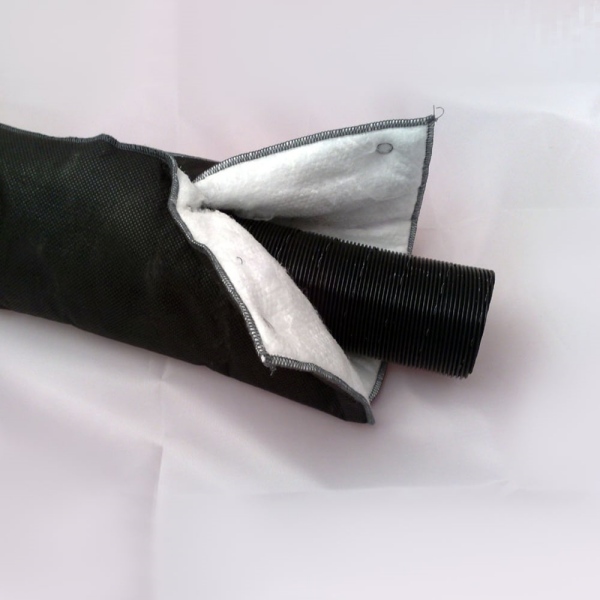

What Is Insulated Diesel Heater Ducting?
Insulated diesel heater ducting is a warm air duct hose with an added insulation layer or an external insulation sleeve. The base ducting may be APK warm air ducting, PAP hot air ducting, aluminum foil ducting or another flexible air duct structure. The insulation layer helps reduce heat loss as warm air travels from the heater outlet to the cabin outlet.
The insulation can be built into the ducting wall or supplied as a separate heater duct insulation sleeve. A pre-insulated ducting structure is suitable when the buyer wants a finished integrated product. A separate insulation sleeve is useful when the installer wants to cover selected ducting sections only.
This product works on the warm air outlet side of a diesel heater system. It is not an exhaust pipe, not a combustion air intake hose and not a fuel line. It is used for cabin air transfer, comfort heating and warm air distribution.
Why Heat Loss Happens in Diesel Heater Ducting
Warm air loses heat when it passes through cold or uninsulated routes. In vans and RVs, the ducting may run near metal panels, floor cavities or unheated storage areas. In boats, the ducting may pass through cold hull spaces, compartments or interior panels. Longer ducting routes create more surface area for heat transfer, which can reduce outlet temperature.
Heat Loss Is More Likely When:
- The heater is installed far from the main warm air outlet.
- The ducting route passes through cold or unheated compartments.
- The warm air hose is installed against metal body panels or cold surfaces.
- The ducting is long, branched or routed through multiple cavities.
- The vehicle, RV or boat operates in low-temperature environments.
- The buyer wants better warm air delivery at the final outlet.
Insulated Ducting vs Standard APK Warm Air Ducting
Standard APK warm air ducting is suitable for many diesel heater installations. However, when the ducting path is long or exposed to cold surroundings, insulated APK ducting or a heater duct insulation sleeve can improve heat retention along the route.
| Comparison Point | Standard APK Warm Air Ducting | Insulated Diesel Heater Ducting |
|---|---|---|
| Main Function | Transfers warm air from heater outlet to cabin outlet | Transfers warm air while reducing heat loss along the duct route |
| Typical Structure | Flexible composite ducting with aluminum, paper and film layers | Flexible ducting plus insulation layer or external insulation sleeve |
| Best Use | Short to medium ducting routes and normal cabin installations | Long routes, cold compartments, floor cavities, boats, RVs and winter-use vehicles |
| Main Buyer Search Terms | APK warm air ducting, diesel heater ducting, heater duct hose | insulated diesel heater ducting, heater duct insulation sleeve, insulated warm air duct |
| Custom Options | Diameter, length, color, cut length and packaging | Diameter, length, insulation thickness, outer layer, cut length and packaging |

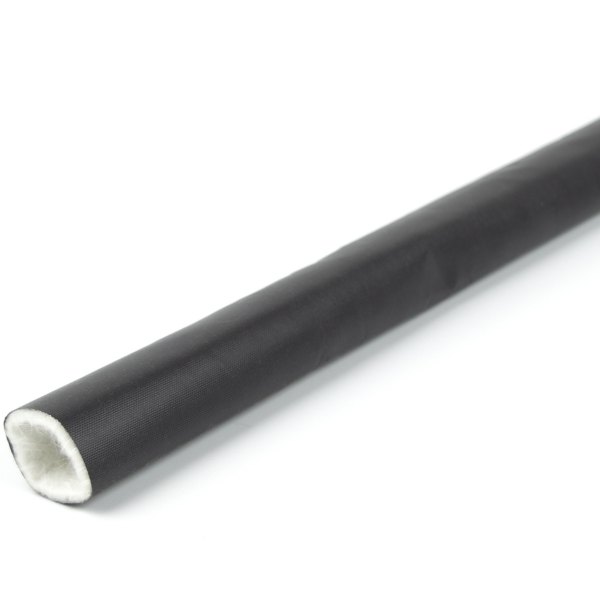

Pre-Insulated Ducting vs Heater Duct Insulation Sleeve
Buyers can reduce ducting heat loss in two main ways. One is to use a pre-insulated warm air duct. The other is to add a heater duct insulation sleeve around standard ducting. Both approaches can work, but the best choice depends on installation method, purchasing model and how much of the duct route needs insulation.
| Option | Description | Best For | Buyer Notes |
|---|---|---|---|
| Pre-Insulated Diesel Heater Ducting | Warm air ducting supplied with integrated insulation layer | OEM heater kits, repeated installations and fixed ducting layouts | Good for consistent production and clean packaging. |
| Heater Duct Insulation Sleeve | Separate insulation sleeve installed over existing warm air duct hose | Retrofit work, repair projects and selected cold sections of ducting | Useful when only part of the ducting route needs insulation. |
| Insulated APK Ducting | APK warm air ducting combined with thermal insulation layer | Vans, RVs, boats and visible or semi-visible heater systems | Combines APK appearance with better heat retention. |
| Custom Insulated Warm Air Duct | Ducting designed by diameter, insulation, outer layer and length | OEM projects, marine systems and special heater installations | Best option when the buyer has drawings, samples or fixed technical requirements. |
Common Sizes for Insulated Diesel Heater Ducting
Insulated diesel heater ducting is usually selected by inside diameter of the air path. The insulation layer adds outside diameter, so buyers must confirm both the air duct ID and the available installation space around the hose.
| Air Duct ID | Common Search Terms | Typical Use | Selection Note |
|---|---|---|---|
| 50mm | 50mm insulated heater ducting, 50mm diesel heater duct insulation | Compact heater systems and short warm air routes | Confirm insulation outside diameter before routing through tight openings. |
| 60mm | 60mm insulated diesel heater ducting, 60mm heater duct insulation sleeve | Vans, small RVs, compact boat cabins and common diesel heater systems | One of the most common sizes for aftermarket heater installations. |
| 75mm | 75mm insulated APK ducting, 75mm heater duct insulation | RVs, trucks, larger van heating systems and marine cabins | Useful when more warm air volume is required. |
| 80mm | 80mm insulated warm air duct, 80mm heater ducting insulation | Medium to large warm air systems and multi-outlet layouts | Check bend radius and outer diameter after insulation. |
| 90mm | 90mm insulated diesel heater ducting, 90mm warm air duct insulation | Large cabins, boats, RVs and high air volume systems | Larger insulated ducting needs more installation clearance. |
| 100mm | 100mm insulated heater ducting, 100mm insulated warm air duct | High airflow OEM heater systems and special warm air transfer projects | Confirm reducers, outlet grilles and available routing space before production. |
Where Insulated Diesel Heater Ducting Is Used
Insulated ducting helps preserve warm air when the route passes under floors, behind panels or near cold vehicle body sections.
Longer ducting routes and multiple outlets can benefit from insulation to improve warm air delivery.
Boat heater ducting often passes through cold compartments, making insulation useful for maintaining cabin heating performance.
Insulated warm air ducting can help improve comfort in sleeper compartments and auxiliary heater routes.
Pre-insulated cut lengths can be packed with heater kits for consistent installation and repeatable supply.
Insulated ducting can be used for equipment heating, generator enclosures and low-pressure warm air distribution.
How to Choose Insulated Diesel Heater Ducting
Choosing the correct insulated ducting requires more information than standard warm air hose selection. In addition to the inside diameter and length, buyers must consider insulation thickness, outside diameter, bend route and installation space.
| Selection Factor | What to Confirm | Recommended Direction |
|---|---|---|
| Inside Diameter | Measure the heater outlet, reducer, vent or original ducting ID | Choose the correct air path size before deciding insulation structure |
| Outside Diameter | Check the final diameter after insulation is added | Make sure it can pass through panels, floor openings and cabinets |
| Insulation Thickness | Confirm how much thermal protection is required | Select according to route length, cold exposure and available space |
| Route Length | Measure the total distance from heater outlet to final warm air outlet | Longer routes are stronger candidates for insulated ducting |
| Bend Route | Check curves, tight turns, panels, furniture and bulkheads | Use flexible insulation designs for compact mobile installations |
| Surface Requirement | Determine whether the ducting will be visible or hidden | Use a clean outer jacket or finished surface for visible areas |
| Supply Format | Bulk roll, cut length, heater kit or OEM packaging | Confirm packaging method before mass production |
Insulated Ducting for Vans
Vans often have heaters mounted under seats, under the floor or inside cabinets. Warm air ducting may need to pass through cold cavities before reaching the main living area. Insulated diesel heater ducting can help reduce heat loss when the route crosses unheated sections of the vehicle.
- Use insulation when ducting passes through cold body panels or floor cavities.
- Confirm outside diameter after insulation before routing through tight spaces.
- Use cut-to-length insulated ducting for repeated van conversion kits.
- Use APK-based insulated ducting when a cleaner surface is required.
Insulated Ducting for RVs and Caravans
RVs and caravans may use longer ducting runs and multiple warm air outlets. In these systems, duct insulation can help preserve heat before the air reaches distant outlets. This is especially useful when ducting passes through storage compartments or floor-level routes.
- Use insulated ducting for longer warm air runs.
- Confirm reducer, outlet grille and branch connector compatibility.
- For multi-outlet systems, check airflow balance before finalizing duct size.
- Use fixed cut lengths for OEM RV heater kits and replacement packs.

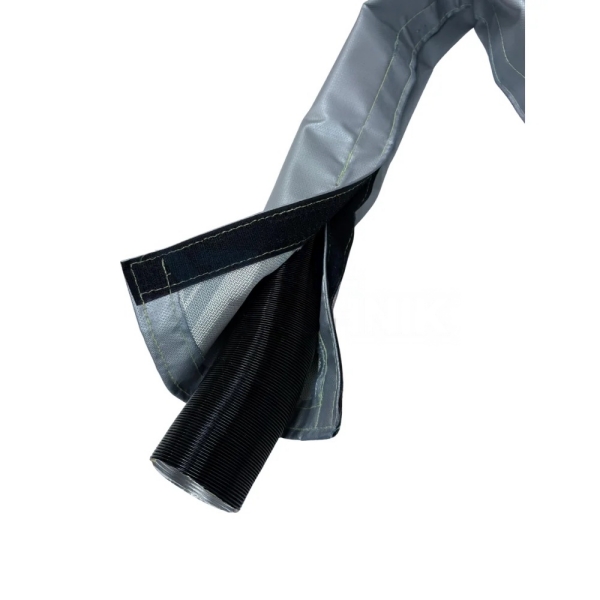

Insulated Ducting for Boats
Boats often have confined and cold installation spaces. Warm air ducting may pass through hull-side compartments, under bunks, behind panels or into separate cabins. Insulated marine heater ducting can help reduce heat loss and improve warm air delivery in these routes.
- Use insulated ducting where the hose passes through cold marine compartments.
- Check available space because insulation increases outside diameter.
- Use flexible ducting for curved and narrow marine cabin routes.
- For heater kit supply, define cut length and packaging before production.
Material and Structure Options
Insulated diesel heater ducting can be made with different base ducting and insulation structures. The correct design depends on target temperature retention, flexibility, surface appearance and installation space.
| Structure | Description | Recommended Use |
|---|---|---|
| APK Ducting with Insulation Sleeve | APK warm air ducting covered with an external insulation sleeve | Vans, RVs, marine cabins and retrofit heater installations |
| Pre-Insulated APK Ducting | Integrated structure with APK ducting and insulation layer | OEM heater kits and repeated production projects |
| PAP Ducting with Insulation | Paper aluminum warm air ducting combined with insulation | Economical insulated warm air transfer where appearance is less critical |
| Aluminum Foil Insulated Duct | Reflective ducting with added insulation layer | Compact warm air routing and thermal protection applications |
| Custom Multi-layer Insulated Ducting | Customized wall structure with insulation and outer protective layer | OEM systems, special routing and industrial warm air transfer |
Related Accessories for Insulated Heater Ducting
Insulated ducting is usually part of a complete heater air distribution system. Buyers should confirm whether the installation also needs clamps, reducers, branch connectors, outlet grilles and heat protection products.
| Accessory | Function | Related Search Terms |
|---|---|---|
| Heater Duct Clamp | Secures ducting to heater outlet, vent or reducer | heater duct clamp, warm air ducting clamp |
| Duct Reducer | Connects ducting with different diameters | heater duct reducer, warm air duct adaptor |
| Y Branch Connector | Splits warm air into multiple routes | heater ducting Y branch, warm air Y splitter |
| Warm Air Outlet Grille | Controls outlet direction into cabin or compartment | warm air outlet grille, diesel heater outlet vent |
| Heat Protection Tube | Protects nearby wires, hoses or ducts from radiant heat | aluminized heat protection tube, heat reflective tube |
| Aluminum Reflective Tape | Used for local sealing, wrapping or reflective protection | aluminum heat reflective tape, adhesive aluminum tape |
Custom Manufacturing Options
BSTFLEX can manufacture insulated diesel heater ducting for distributors, heater kit manufacturers, van conversion companies, RV suppliers, marine heater installers and OEM projects. Custom production can be based on drawings, samples, installation photos or technical requirements.
- Custom inside diameter according to heater outlet, reducer or vent size.
- Custom insulation thickness and outer diameter control.
- APK, PAP, aluminum foil or custom composite base ducting.
- Bulk roll supply for distributors and workshops.
- Cut-to-length ducting for heater installation kits.
- Black, silver, reflective or customized outer surface.
- Printed marking, OEM label and private packaging.
- Batch production for vans, RVs, boats and industrial heater systems.
Common Purchasing Mistakes
Insulated warm air ducting requires more careful specification than standard heater duct hose. The buyer must confirm both the air path size and the final insulated outside diameter.
- Only specifying outside diameter: heater ducting should be selected by inside air path diameter first.
- Ignoring insulation thickness: insulation increases outside diameter and may affect routing space.
- Using insulation where clearance is too small: check panels, cabinets and floor openings before ordering.
- Confusing warm air ducting with exhaust insulation: insulated heater ducting is for cabin warm air, not exhaust gas.
- Not checking accessories: reducers, clamps and outlet grilles must match the ducting size.
- Ordering without routing photos: installation photos help choose the right structure and cut length.
Use Together With Related BSTFLEX Products
Insulated diesel heater ducting can be used with other warm air ducting and heat protection products to build a more complete thermal management system.
- Aluminized Heat Protection Tube and Warm Air Ducting for insulated APK ducting, PAP ducting, diesel heater ducting and heat protection tube products.
- APK Warm Air Ducting Manufacturer for custom APK ducting, bulk rolls and OEM heater duct hose.
- Diesel Heater Ducting Sizes for 50mm, 60mm, 75mm, 80mm, 90mm and 100mm size selection.
- Aluminum Foil Corrugated Tube for flexible air routing and heat reflective duct protection.
- Aluminum Coated Fiberglass Heat Reflective Sleeve for radiant heat protection around hoses, wires and tubes.
- Adhesive Backed Aluminum Heat Reflective Tape for local wrapping, sealing and reflective heat protection.
Request Insulated Diesel Heater Ducting
BSTFLEX supplies insulated diesel heater ducting, heater duct insulation sleeves, insulated APK ducting, PAP hot air ducting and heat protection tube products for vans, RVs, boats, trucks, heater kits and OEM warm air systems.
- 50mm, 60mm, 75mm, 80mm, 90mm and 100mm insulated heater ducting
- Custom inside diameter and final outside diameter control
- Custom insulation thickness and outer layer options
- APK, PAP, aluminum foil and paper aluminum ducting structures
- Cut-to-length pieces, bulk rolls and heater kit packaging
- OEM label, printed marking and private packaging available
Conclusion
Insulated diesel heater ducting helps reduce heat loss when warm air travels through cold or long ducting routes in vans, RVs, boats and trucks. It is especially useful for winter-use vehicles, marine heater systems, multi-outlet layouts and OEM heater kits where warm air delivery matters.
For accurate selection, buyers should confirm inside diameter, final outside diameter after insulation, ducting length, insulation thickness, bend route, surface requirement and packaging method. BSTFLEX can supply insulated APK ducting, heater duct insulation sleeves and custom warm air ducting for B2B heater system customers.
View the full product series here: BSTFLEX Insulated Diesel Heater Ducting and Warm Air Ducting Products.
FAQ: Insulated Diesel Heater Ducting
What is insulated diesel heater ducting?
Insulated diesel heater ducting is warm air duct hose with an added insulation layer or insulation sleeve. It helps reduce heat loss between the heater outlet and the final cabin outlet.
When should I use heater duct insulation?
Heater duct insulation is useful when the ducting route is long, passes through cold compartments, runs under floors or panels, or needs better heat retention in vans, RVs, boats or trucks.
Is insulated heater ducting the same as exhaust insulation?
No. Insulated heater ducting transfers warm cabin air from the heater outlet. Exhaust insulation is used for exhaust pipes or exhaust gas systems. They are different products and should not be interchanged.
Can APK ducting be insulated?
Yes. APK warm air ducting can be supplied with an insulation sleeve or produced as an insulated ducting structure according to the application, diameter, insulation thickness and packaging requirement.
What sizes are available for insulated diesel heater ducting?
Common sizes include 50mm, 60mm, 75mm, 80mm, 90mm and 100mm. Custom inside diameter and final outside diameter can also be manufactured according to project requirements.
What information is needed for a quotation?
Please provide inside diameter, ducting length, insulation thickness, required outside diameter, material structure, surface requirement, quantity, packaging method and installation photos if available.
